(The image may differ from original product.)
Table Saw
WZTS 2000
Articlenumber: 4340570
EAN - number: 20036997
Brand: WORKZONE
Instructions and data sheets for WZTS 2000
Not able to find operating instructions for your Einhell tool? No worries: all our manuals and documents are also available online - it takes just a mouse click to download them.
Specifications
Facts, figures and information for Table Saw WZTS 2000: here you will find detailed technical data, as well as specific information on dimensions, weight and packaging of this Einhell product.
| Technical info | |
|---|---|
| Mains supply | 230-240 V | 50 Hz |
| Max. power (S6 | S6%) | 2000 W | 40 % |
| Idle speed | 4250 min^-1 |

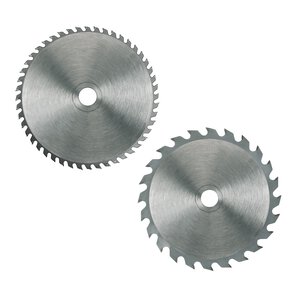

| Saw blade | 254 mm x 30 mm |
| Swiveling range of saw blade | 45 ° |
| Max. cutting height at 45° | 55 mm |
| Max. cutting height at 90° | 80 mm |
| Height adjustment continuous | 0-80 mm |
| Diameter of suction adapter | 35 mm |
| Working height | 870 mm |
| Size of working table | 638 mm x 430 mm |
| Table broadening left | 638 mm x 250 mm |
| Table broadening right | 638 mm x 250 mm |
| Table length extension back side | 430 mm x 320 mm |
Images
