Air Compressor
TE-AC 430/90/10
Articlenumber: 4010800
EAN - number: 4006825642339
Brand: Einhell Expert

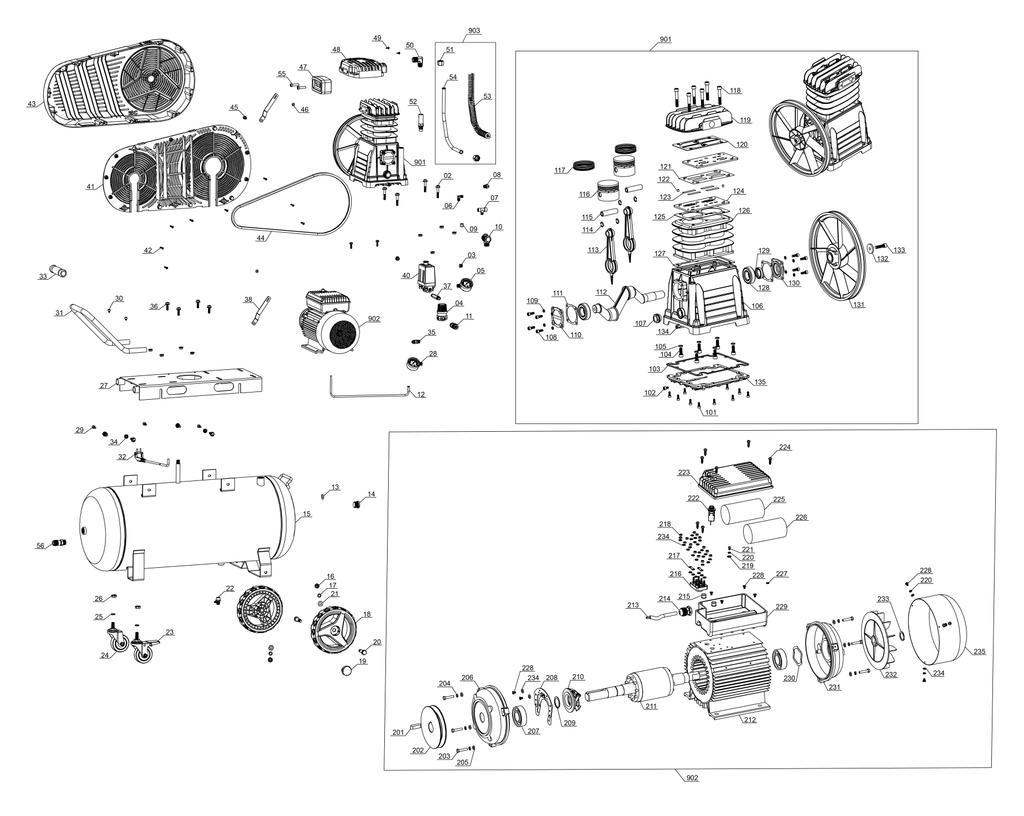

Please note that you must first select your ID number above to see the list view and exploded drawing of your product. You can find your identification number on the nameplate next to the article number or in your operating instructions.
Instructions and data sheets for TE-AC 430/90/10
Not able to find operating instructions for your Einhell tool? No worries: all our manuals and documents are also available online - it takes just a mouse click to download them.
Suitable accessories for TE-AC 430/90/10
Specifications
Facts, figures and information for Air Compressor TE-AC 430/90/10: here you will find detailed technical data, as well as specific information on dimensions, weight and packaging of this Einhell product.
| Technical info | |
|---|---|
| Mains supply | 220-240 V | 50 Hz |
| Max. engine power | 3000 W 4.1 PS |
| Motor speed | 2850 min^-1 |
| Pump speed | 1020 min^-1 |
| Suction capacity | 430 L/min |
| Output power at 0 bar | 230 L/min |
| Output power at 4 bar | 210 L/min |
| Output power at 7 bar | 200 L/min |
| Max. operating pressure | 10 bar |
| Tank volume | 90 L |
| Number of cylinders | 2 Pieces |
| Sound pressure level; Lpa | 73 dB (A) |
| Sound power level; Lwa | 97 dB (A) |
Images
