(The image may differ from original product.)
Sliding Mitre Saw
Articlenumber: 4300395
EAN - number: 4006825644890
Brand: Einhell Classic
Please note that you must first select your ID number above to see the list view and exploded drawing of your product. You can find your identification number on the nameplate next to the article number or in your operating instructions.
Spareparts for TC-SM 2534/1 Dual displayed via list view or via explosion drawing
Sparepart overview

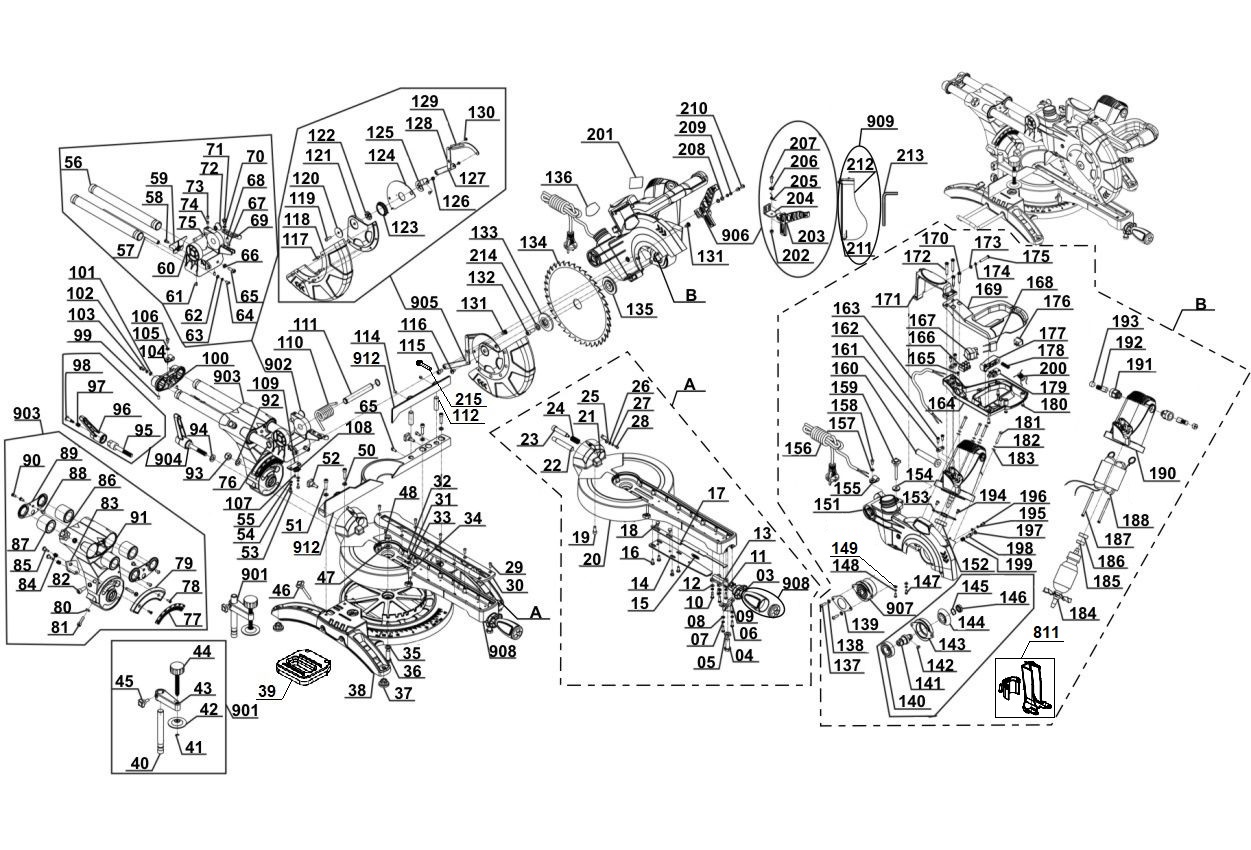

Explosiondrawing
Instructions and data sheets for TC-SM 2534/1 Dual
Not able to find operating instructions for your Einhell tool? No worries: all our manuals and documents are also available online - it takes just a mouse click to download them.
Instructions and data sheets for TC-SM 2534/1 Dual
Not able to find operating instructions for your Einhell tool? No worries: all our manuals and documents are also available online - it takes just a mouse click to download them.
Suitable accessories for TC-SM 2534/1 Dual
Specifications
Facts, figures and information for Sliding Mitre Saw TC-SM 2534/1 Dual: here you will find detailed technical data, as well as specific information on dimensions, weight and packaging of this Einhell product.
Technical info | |
---|---|
Mains supply | 230-240 V | 50 Hz |
Power | 2100 W |
Number of saw teeth | 48 Pieces |
Max. power (S6 | S6%) | 2350 W | 25 % |
Idle speed | 4000 min^-1 |
Saw blade | 250 mm x 30 mm |
Mitre cut | 45 ° - 45 ° |
Swiveling range | 47 ° - 47 ° |
Cutting capacity 90° x 90° | 340 mm x 75 mm |
Cutting capacity 90° x 45° | 240 mm x 75 mm |
Cutting capacity 45° x 90° | 340 mm x 42 mm |
Cutting capacity 45° x 45° | 240 mm x 42 mm |
Diameter of suction adapter | 36 mm |
Length | 800 mm |
Width | 580 mm |
Height | 430 mm |
